Chemistry

 Head Of Chemistry - Pm. Norsham Bin ti Adam




WHAT IS CHEMISTRY ?

Chemistry is too universal and dynamically-changing a subject to be confined to a fixed definition; it might be better to think of chemistry more as a point of view that places its major focus on the structure and properties of substances— particular kinds of  to little boxes.

Chemistry: the central science

Chemistry: the central scienceThe real importance of Chemistry is that it serves as the interface to practically all of the other sciences, as well as to many other areas of human endeavor. For this reason, Chemistry is often said (at least by chemists!) to be the "central science".
Chemistry can be "central" in a much more personal way: with a solid background in Chemistry, you will find it far easier to migrate into other fields as your interests develop.

Research or teaching not for you? Chemistry is so deeply ingrained into so many areas of business, government, and environmental management that some background in the subject can be useful (and able to give you a career edge as a team member having special skills) in fields as varied as product development, marketing, management, computer science, technical writing, and even law.


So just what is chemistry?

[adapted from image found here]
Do you remember the story about the group of blind men who encountered an elephant? Each one moved his hands over a different part of the of the subject.
Thus we can view chemistry from multiple standpoints ranging from the theoretical to the eminently practical:

Mainly theoretical

Mainly practical

Why do particular combinations of atoms hold together, but not others? What are the properties of a certain compound?
How can I predict the shape of a molecule? How can I prepare a certain compound?
Why are some reactions slow, while others occur rapidly?Does a certain reaction proceed to completion?
Is a certain reaction possible? How can I determine the composition of an unknown substance?



Boiling it down to the basics

Chemistry concept mapAt the most fundmental level, chemistry can be organized along the lines shown here.
  • Dynamics refers to the details of that rearrangements of atoms that occur during chemical change, and that strongly affect the rate at , and the mixture of substances that results.
  • Composition and structure define the substances that are results of chemical change. Structure refers specifically to the relative arrangements of the atoms in space. The extent to which a given structure can persist is itself determined by energetics and dynamics.
  • Synthesis, strictly speaking, refers to formation of new (and usually more complex) substances from simpler ones, but in the present context we use it in the more general sense to denote the operations required to bring about chemical change and to isolate the desired products.
This view of Chemistry scheme to organize the fundamental concepts of chemical science. But if you need a single-sentence"definition of Chemistry, this one wraps it up pretty well:
Chemistry is the study of substances; their properties, structure, and the changes they undergo.


Micro-macro: the forest or the trees

Chemistry, like all the natural sciences, begins with the direct observation of nature— in this case, of matter. But when we look at matter in bulk, we see only the "forest", not the "trees"— the atoms and molecules of which matter is composed— whose properties ultimately determine the nature and behavior of the matter we are looking at.
This dichotomy between what we can and cannot directly see constitutes two contrasting views which run through all of chemistry, which we call macroscopic and microscopic.
In the context of Chemistry, "microscopic" implies detail at the atomic or subatomic levels which cannot be seen directly (even with a microscope!)
The macroscopic world is the one we can know by direct observations of physical properties such as mass, volume, etc.
The following table provides a conceptual overview of Chemical science according to the macroscopic/microscopic dichotomy we have been discussing. It is of course only one of many ways of looking at the subject, but you may find it a helpful means of organizing the many facts and ideas you will encounter in your study of Chemistry. We will organize the discussion in this lesson along similar lines.

realm

macroscopic view

microscopic view

compositionformulas, mixtures structures of solids, molecules, and atoms
propertiesintensive properties of bulk matter particle sizes, masses and interactions
change (energetics) energetics and equilibrium statistics of energy distribution
change (dynamics) kinetics (rates of reactions)mechanistics

2 Chemical composition

Mixture or "pure substance" ?

In science it is absolutely necessary to know what we are talking about, so before we can even begin to consider matter from a chemical point of view, we need to know something about its composition; is the stuff I am looking at a single substance, or is it a mixture? (We will get into the details of the definitions elsewhere, but for the moment you probably already have a fair understanding of the distinction; think of a sample of salt (sodium chloride) as opposed to a solution of salt in water— a mixture of salt and water.)
The manufacturer probably claims that their peanut butter
is "pure"; is it really what a chemist would call a "pure substance"?



Elements and compounds

It has been known for at least a thousand years that some substances can be broken down by heating or chemical treatment into "simpler" ones, but there is always a limit; we eventually get substances known as elements that cannot be reduced to any simpler forms by ordinary chemical or physical means. What is our criterion for "simpler"? The most observable (and therefore macroscopic) property is the weight.
The idea of a minimal unit of chemical identity that we call an element developed from experimental observations of the relative weights of substances involved in chemical reactions. For example, the compound mercuric oxide can be broken down by heating into two other substances:
2 HgO → 2 Hg + O2
... but the two products, metallic mercury and dioxygen, cannot be decomposed into simpler substances, so they must be elements.

Elements and atoms

The definition of an element given above is an operational one; a certain result (or in this case, a non-result!) of a procedure that might lead to the decomposition of a substance into lighter units will tentatively place that substance in one of the categories, element or compound. Because this operation is carried out on bulk matter, the concept of the element is also a macroscopic one.
Painting by Joseph Wright of Derby (1734-97) The Alchymist in Search of the Philosopher's Stone discovers Phosphorus [link]

The atom, by contrast, is a microscopic concept which in modern chemistry relates the unique character of every chemical element to an actual physical particle.
The idea of the atom as the smallest particle of matter had its origins in Greek philosophy around 400 BCE but was controversial from the start (both Plato and Aristotle maintained that matter was infinitely divisible.) It was not until 1803 that John Dalton proposed a rational atomic theory to explain the facts of chemical combination as they were then known, thus being the first to employ macroscopic evidence to illuminate the microscopic world.
It took almost until 1900 for the atomic theory to became universally accepted. In the 1920's it became possible to measure the sizes and masses of atoms, and in the 1970's techniques were developed that produced images of individual atoms.
Cobalt atom imaged by a scanning tunneling microscope [link]



Formula and structure

The formula of a substance expresses the relative number of atoms of each element it contains. Because the formula can be determined by experiments on bulk matter, it is a macroscopic concept even though it is expressed in terms of atoms.
What the ordinary chemical formula does not tell us is the order in which the component atoms are connected, whether they are grouped into discrete units (molecules) or are two- or three dimensional extended structures, as is the case with solids such as ordinary salt. The microscopic aspect of composition is structure, which in its greatest detail reveals the relative locations (in two or three dimensional space) of each atom within the minimum collection needed to define the structure of the substance.

Macroscopic

Microscopic

Substances are defined at the macroscopic level by their formulas or compositions, and at the microscopic level by their structures.The elements hydrogen and oxygen combine to form a compound whose composition is expressed by the formula H2O.
The molecule of water has the structure shown here.
Chemical substances that cannot be broken down into simpler ones are known as elements. The actual physical particles of which elements are composed are atoms or molecules. Sulfur – the element in its orthorhombic crystalline form. The S8 molecule is an octagonal ring of sulfur atoms. The crystal shown at the left is composed of an ordered array of these molecules.
(No, they don't actually move around like this, although they are in a constant state of vibrational motion.)

Compounds and molecules

As we indicated above, a compound is a substance containing more than one element. Since the concept of an element is macroscopic and the distinction between elements and compounds was recognized long before the existence of physical atoms was accepted, the concept of a compound must also be a macroscopic one that makes no assumptions about the nature of the ultimate .
Thus when carbon burns in the presence of oxygen, the product carbon dioxide can be shown by (macroscopic) weight measurements to contain both of the original elements:
C + O2 → CO2
10.0 g + 26.7 g = 36.7 g
One of the important characteristics of a compound is that the proportions by weight of each element in a given compound are constant. For example, no matter what weight of carbon dioxide we have, the percentage of carbon it contains is (10.0 / 36.7) = 0.27, or 27%.


Molecules

A molecule is an assembly of atoms having a fixed composition, structure, and distinctive, measurable properties.
"Molecule" refers to a kind of particle, and is therefore a microscopic concept. Even at the end of the 19th century, when compounds and their formulas had long been in use, some prominent chemists doubted that molecules (or atoms) were any more than a convenient model.
Computer-model of the nicotine molecule, C10H14N2, by Ronald Perry
Molecules suddenly became real in 1905, when Albert Einstein showed that Brownian motion, the irregular microscopic movements of tiny pollen grains floating in water, could be directly attributed to collisions with molecule-sized particles.
Finally, we get to see one! In 2009, IBM scientists in Switzerland succeeded in imaging a real molecule, using a technique known as atomic force microscopy in which an atoms-thin metallic probe is drawn ever-so-slightly above the surface of an immobilized pentacene molecule cooled to nearly absolute zero. In order to improve the image quality, a molecule of carbon monoxide was placed on the end of the probe.
The image produced by the AFM probe is shown at the very bottom. What is actually being imaged is the surface of the electron clouds of the molecule, which consists of six hexagonal rings of carbon atoms with hydrogens on its periphery. The tiny bumps that correspond to these hydrogen atom attest to the remarkable resolution of this experiment.
The original article was publshed in Science magazine; see here for an understandable account of this historic work.


The atomic composition of a molecule is given by its formula. Thus the formulas CO, CH4, and O2 represent the molecules carbon monoxide, methane, and dioxygen. However, the fact that we can write a formula for a compound does not imply the existence of molecules having that composition. Gases and most liquids consist of molecules, but many solids exist as extended lattices of atoms or ions (electrically charged atoms or molecules.) For example, there is no such thing as a "molecule" of ordinary salt, NaCl (see below.)

Confused about the distinction between molecules and compounds?

Maybe the following will help:
A molecule but not a compound - Ozone, O3, is not a compound because it contains only a single element. This well-known molecule is a compound because it contains more than one element. [link] Ordinary solid salt is a compound but not a molecule. It is built from interpenetrating lattices of sodium and chloride ions that extend indefinitely.

Structure and properties

Composition and structure lie at the core of Chemistry, but they encompass only a very small part of it. It is largely the properties of chemical substances that interest us; it is through these that we experience and find uses for substances, and much of chemistry-as-a-science is devoted to understanding the relation between structure and properties. For some purposes it is convenient to distinguish between chemical properties and physical properties, but as with most human-constructed dichotomies, the distinction becomes more fuzzy as one looks more closely.

Putting it all together

This concept map offers a good overview of the ideas we have developed so far. Take some time to look it over and make sure you understand all the terms and the relations between them.
Chemistry concept map: substances
For a more in-depth treatment of much of the material covered here, please see The basics of atoms, moles, formulas equations, and nomenclature.

Chemical change
Chemical change is defined macroscopically as a process in which new substances are formed. On a microscopic basis it can be thought of as a re-arrangement of atoms. A given chemical change is commonly referred to as a chemical reaction and is described by a chemical equation that has the form
reactants → products

Chemical change vs. physical change

In elementary courses it is customary to distinguish between "chemical" and "physical" change, the latter usually relating to changes in physical state such as melting and vaporization. As with most human-created dichotomies, this begins to break down when examined closely. This is largely because of some ambiguity in what we regard as a distinct "substance".

Example: dichlorine, Cl2.

Elemental chlorine exists as the diatomic molecule Cl2 in the gas, liquid, and solid states; the major difference between them lies in the degree of organization. In the gas the molecules move about randomly, whereas in the solid they are constrained to locations in a 3-dimensional lattice. In the liquid, this tight organization is relaxed, allowing the molecules to slip and slide around each other.
Since the basic molecular units remain the same in all three states, the processes of melting, freezing, condensation and vaporization are usually regarded as physical rather than chemical changes.

Example: sodium chloride, NaCl.

Solid salt consists of an indefinitely extended 3-dimensional array of Na+ and Cl ions (electrically- charged atoms.)
When heated above 801°C, the solid melts to form a liquid consisting of these same ions. This liquid boils at 1430° to form a vapor made up of discrete molecules having the formula Na2Cl2.
Salt dissolves in water to form a solution containing separate Na+ and Cl ions to which are loosely attached varying numbers of H2O molecules. The resulting hydrated ions are represented as Na+(aq) and Cl(aq).
Because the ions in the solid, the hydrated ions in the solution, and the molecule Na2Cl2 are really different chemical species, so the distinction between physical and chemical change becomes a bit fuzzy.


Energetics of chemical change

Energetics and equilibrium

You have probably seen chemical reaction equations such as the "generic" one shown below:
A + B → C + D
An equation of this kind does not imply that the reactants A and B will change entirely into the products C and D, although in many cases this will be what appears to happen. Most chemical reactions proceed to some inermediate point that yields a mixture of reactants and products.
For example, if the two gases phosphorus trichloride and chlorine are mixed together at room temprature, they will combine until about half of them have changed into phosphorus pentachloride:
PCl3 + Cl2 → PCl5
At other temperatures the extent of reaction will be smaller or greater. The result, in any case, will be an equilibrium mixture of reactants and products.
The most important question we can ask about any reaction is "what is the equilibrium composition"?
  • If the answer is "all products and negligible quantities of reactants", then we say the reaction can takes place and that it "goes to completion ".
  • If the answer is "negligible quantities of products", then we say the reaction cannot take place in the forward direction, but that the reverse reaction can occur.
  • If the answer is "significant quantities of all components" (both reactans and products) are present in the equilibrium mixture, then we say the reaction is "reversible" or "incomplete".
The aspect of "change" we are looking at here is a property of a chemical reaction, rather than of any one substance. But if you stop to think of the huge number of possible reactions between the more than 15 million known substances, you can see that it would be an impossible task to measure and record the equilibrium compositions of every possible combination.
Fortunately, we don't need to do this. One or two directly measurable properties of the individual reactants and products can be combined to give a number from which the equilibrium composition at any temperature can be easily calculated. There is no need to do an experiment!
This is very much a macroscopic view because the properties we need to directly concern ourselves with are those of the reactants and products. Similarly, the equilibrium composition— the measure of the extent to which a reaction takes place— is expressed in terms of the quantities of these substances.

Chemical Energetics

Virtually all chemical changes involve the uptake or release of energy, usually in the form of heat. It turns out that these energy changes, which are the province of chemical thermodynamics, serve as a powerful means of predicting whether or not a given reaction can proceed, and to what extent. Moreover, all we need in order to make this prediction is information about the energetic properties of the reactants and products; there is no need to study the reaction itself. Because these are bulk properties of matter, chemical thermodynamics is entirely macroscopic in its outlook.
exothermic reaction

Dynamics of chemical change

Dynamics: kinetics and mechanism

The energetics of chemical change that we discussed immediately above relate to the end result of chemical change: the composition of the final reaction mixture, and the quantity of heat liberated or absorbed.
The dynamics of chemical change are concerned with how the reaction takes place:
  • What has to happen to get the reaction started (which molecule gets bumped first, how hard, and from what direction?)
  • Does the reaction take place in a single step, or are multiple steps and intermediate structures involved?
chemical energetics/dynamics
These details constitute what chemists call the mechanism of the reaction. For example, the reaction between nitric oxide and hydrogen (identified as the net reaction at the bottom left), is believed to take place in the two steps shown here. Notice that the nitrous oxide, N2O, is formed in the first step and consumed in the second, so it does not appear in the net reaction equation. The N2O is said to act as an intermediate in this reaction. Some intermediates are unstable species, often distorted or incomplete molecules that have no independent existence; these are known as transition states.
The microscopic side of dynamics looks at the mechanisms of chemical reactions. This refers to a "blow-by-blow" description of what happens when the atoms in the reacting species re-arrange themselves into the configurations they have in the products.
Mechanism represents the microscopic aspect of chemical change. Mechanisms, unlike energetics, cannot be predicted from information about the reactants and products; chemical theory has not yet advanced to the point were we can do much more than make educated guesses. To make matters even more complicated (or, to chemists, interesting!), the same reaction can often proceed via different mechanisms under different conditions.

Kinetics

Because we cannot directly watch the molecules as they react, the best we can usually do is to infer a reaction mechanism from experimental data, particularly that which relates to the rate of the reaction as it is influenced by the concentrations of the reactants. This entirely experimental area of chemical dynamics is known as kinetics.
Reaction rates, as they are called, vary immensly: some reactions are completed in microseconds, others may take years; many are so slow that their rates are essentially zero. To make things even more interesting, there is no relation between reaction rates and "tendency to react" as governed by the factors in the top half of the above diagram; the latter can be accurately predicted from energetic data on the substances (the properties we mentioned in the previous screen), but reaction rates must be determined by experiment.

Catalysts

chemical catalyst Catalysts can make dramatic changes in rates of reactions, especially in those whose un-catalyzed rate is essentially zero. Consider, for example, this rate data on the decomposition of hydrogen peroxide. H2O2 is a by-product of respiration that is poisonous to living cells which have, as a consquence, evolved a highly efficient enzyme (a biological catalyst) that is able to destroy peroxide as quickly as it forms. Catalysts work by enabling a reaction to proceed by an alternative mechanism.
In some reactions, even light can act as a catalyst. For example, the gaseous elements hydrogen and chlorine can remain mixed together in the dark indefinitely without any sign of a reaction, but in the sunlight they combine explosively.

chemistry concept map: chemical change


Currents of modern Chemistry
In the preceding section we looked at chemistry from a conceptual standpoint. If this can be considered a "macroscopic" view of chemistry, what is the "microscopic" view? It would likely be what chemists actually do. Because a thorough exploration of this would lead us into far more detail than we can accommodate here, we will mention only a few of the areas that have emerged as being especially important in modern chemistry.

Separation science

A surprisingly large part of chemistry has to do with isolating one component from a mixture. This may occur at any number of stages in a manufacturing process, including the very critical steps involved in removing toxic, odiferous, or otherwise undesirable by-products from a waste stream. But even in the research lab, a considerable amount of effort is often devoted to separating the desired substance from the many components of a reaction mixture, or in separating a component from a complex mixture (for example, a drug metabolite from a urine sample) prior to measuring the amount present.
Distillation - separation of liquids having different boiling points. This ancient technique (believed to have originated with Arabic alchemists in 3500 BCE), is still one of the most widely employed operations both in the laboratory and in industrial processes such as oil refining.
Wikipedia article - Industrial distillation tutorial -
Solvent extraction - separation of substances based on their differing solubilities. A common laboratory tool for isolating substances from plants and chemical reaction mixtures. Practical uses include processing of radioactive wastes and decaffienation of coffee beans. The separatory funnel shown here is the simplest apparatus for liquid-liquid extraction; for solid-liquid extraction, the Soxhlet apparatus is commonly used.
Wikipedia article on solvent extraction
Chromatography - This extremely versatile method depends on the tendency of different kinds of molecules to adsorb (attach) to different surfaces as they travel along a "column" of the adsorbent material. Just as the progress of people walking through a shopping mall depends on how long they spend looking in the windows they pass, those molecules that adorb more strongly to a material will emerge from the chromatography column more slowly than molecules that are not so strongly adsorbed.

Paper chromatography of plant juice [link]
Gel electrophoresis - a powerful method for separating and "fingerprinting" macromolecules such as nucleic acids or proteins on the basis of physcal properties such as size and electric charge.
More information - Wikipedia article - its use in DNA analysis - Run your own virtual DNA analysis

Identification and assay

What do the following people have in common?
  • A plant manager deciding on whether to accept a rail tank car of vinyl chloride for manufacture into plastic pipe
  • An agricultural chemist who wants to know about the vitamin content of a new vegetable hybrid
  • The manager of a city water-treatment plant who needs to make sure that the carbonate content of the water is maintained high enough to prevent corrosion, but low enough to prevent scale build-up
The answer is that all depend on analytical techniques — measurements of the nature or quantity ("assays") of some substance of interest, sometimes at very low concentrations. A large amount of research is devoted to finding more accurate and convenient means of making such measurements. Many of these involve sophisticated instruments; among the most widely used are the following:

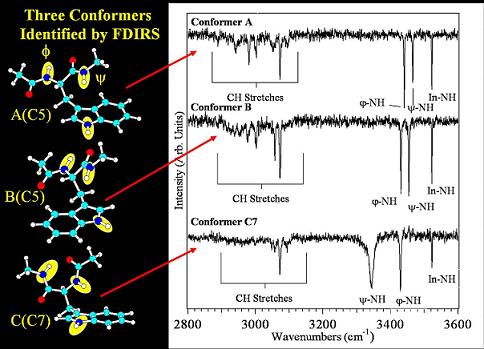

Spectrophotometers that examine the ways that light of various wavelengths is absorbed, emitted, or altered by atomic and molecular species. [image link]
More on: Atomic spectroscopy -
Mass spectrometers that break up molecules into fragments that can be characterized by electrical methods. [image link]
More information -
Instruments (NMR spectrometers) that analyze the action of radio waves and magnetic fields on atomic nuclei in order to examine the nature of the chemical bonds attached to a particular kind of atom. [Image: NMR spectrum of ethanol]
What is it? - More information -
"In the early 1900's a chemist could analyze about 200 samples per year for the major rock-forming elements. Today, using X-ray fluorescence spectrometry, two chemists can perform the same type of analyses on 7,000 samples per year."
old analytical chemistry lab

Materials, polymers, and nanotechnology

Materials science attempts to relate the physical properties and performance of engineering materials to their underlying chemical structure with the aim of developing improved materials for various applications. The Role of Chemistry in Materials Science (a non-technical overview)
Polymer chemistry - developing polymeric ("plastic") materials for industrial uses. Connecting individual polymer molecules by cross-links (red) increases the strength of the material. Thus ordinary polyethylene is a fairly soft material with a low melting point, but the cross-linked form is more rigid and resistent to heat. [link]
- Wikipedia article -
Organic semiconductors offer a number of potential advantages over conventional metalloid-based devices. [image link]
Fullerenes, nanotubes and nanowires - Fullerenes were first identified in 1985 as products of experiments in which graphite was vaporized using a laser, work for which R. F. Curl, Jr., R. E. Smally, and H. W. Kroto shared the 1996 Nobel Prize in Chemistry. Fullerene research is expected to lead to new materials, lubricants, coatings, catalysts, electro-optical devices, and medical applications.
Kim Allen's Fullerene Page - Fullerene Science Module - C&EN Cagey Chemistry article -
Nanodevice chemistry — constructing molecular-scale assemblies for specific tasks such as computing, producing motions, etc.
Molecular motor developed at
vrije Universiteit Amsterdam - [link]
Biosensors and biochips - the surfaces of metals and semiconductors "decorated" with biopolymers can serve as extremely sensitive detectors of biological substances and infectious agents.
Article - Wikipedia article -
A single strand of DNA attached to a Gold surface [link]

Biochemistry and Molecular biology

biochemistry concept mapThis field covers a wide range of studies ranging from fundamental studies on the chemistry of gene expression and enzyme-substrate interactions to drug design. Much of the activity in this area is directed to efforts in drug discovery.
More on drug discovery: Wikipedia article - ScienceCareers article

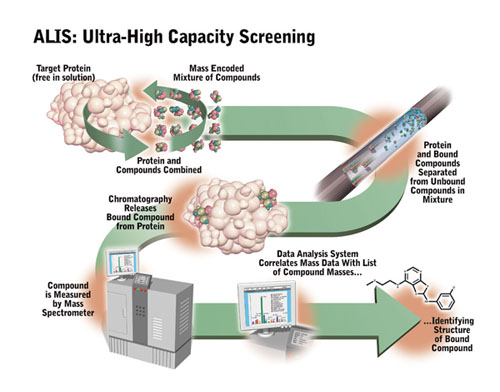

Drug screening began as a largely scattershot approach in which a pathogen or a cancer cell line was screened against hundreds or thousands of candidate substance in the hope of finding a few "leads" that might result in a useful therapy. This field is now highly automated and usually involves combinatorial chemistry (see below) combined with innovative separation and assay methods.

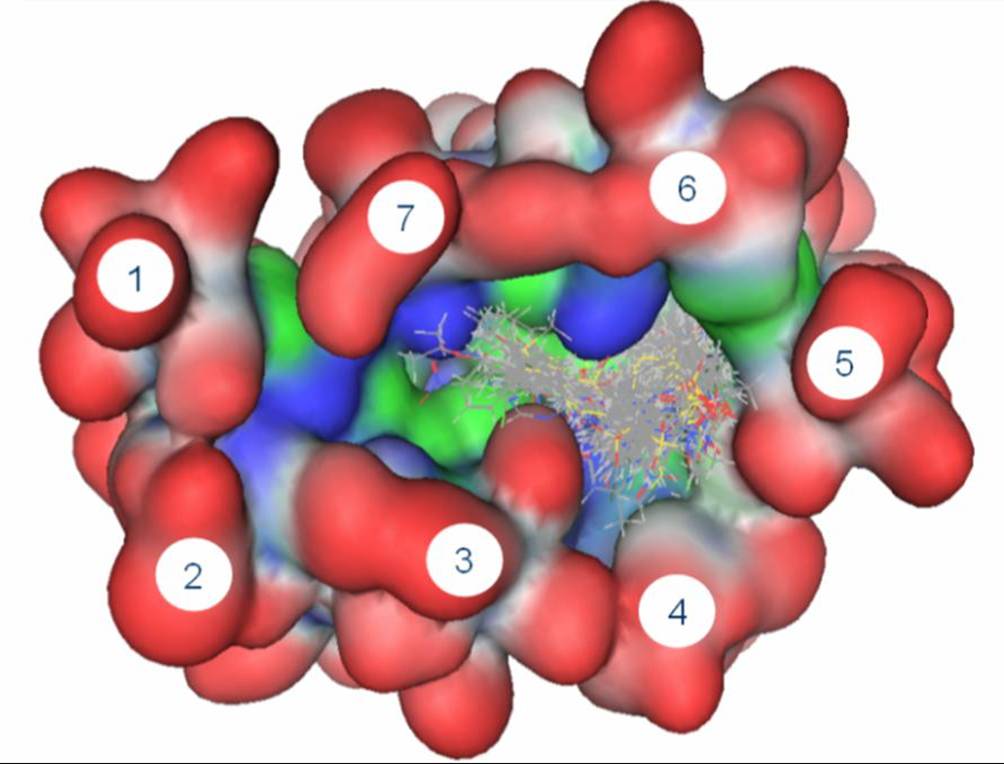

Drug design looks at interactions between enzymes and possible inhibitors. Computer-modeling is an essential tool in this work.
Proteomics - This huge field focusses on the relations between structure and function of proteins— of which there are about 400,000 different kinds in humans. Proteomics is related to genetics in that the DNA sequences in genes get decoded into proteins which eventually define and regulate a particular organism.
Chemical genomics explores the chain of events in which signalling molecules regulate gene expression.
Image: TGFβ receptor signal transduction pathway

Synthesis

In its most general sense, this word refers to any reaction that leads to the formation of a particular molecule. It is both one of the oldest areas of chemistry and one of the most actively persued. Some of the major threads are
New-molecule synthesis - Chemists are always challenged to come up with molecules containing novel features such as new shapes or unusual types of bonds.
Combinatorial chemistry refers to a group of largely-automated techniques for generating tiny quantities of huge numbers of different molecules ("libraries") and then picking out those having certain desired properties. Although it is a major drug discovery technique, it also has many other applications.
Green chemistry - synthetic methods that focus on reducing or eliminating the use or release of toxic or non-biodegradable chemicals or byproducts.
What is Green Chemistry? -
Process chemistry bridges the gap between chemical synthesis and chemical engineering by adapting synthetic routes to the efficient, safe, and environmentally-responsible methods for large-scale synthesis.

Congratulations! You have just covered all of Chemistry, condensed into one quick and painless lesson— the world's shortest Chemistry course! Yes, we left out a lot of the details, the most important of which it will take you a few months of happy discovery to pick up. But if you keep in mind the global hierarchy of composition/structure, properties of substances, and change (equilibrium and dynamics) that we have developed in both macroscopic and microscopic views, you will find it much easier to assemble the details as you encounter them and to see where they fit into the bigger picture.


What you should be able to do
Make sure you thoroughly understand the following essential ideas which have been presented above. It is especially imortant that you know the precise meanings of all the highlighted terms in the context of this topic.
  • Distinguish beween chemistry and physics;
  • Suggest ways in which the fields of engineering, economics, and geology relate to Chemistry;
  • Define the following terms, and classify them as primarily microscopic or macroscopic concepts: element, atom, compound, molecule, formula, structure.
  • The two underlying concepts that govern chemical change are energetics and dynamics. What aspects of chemical change does each of these areas describe?


Concept Map
Chemistry concept map
